MC14032B Datasheet - Motorola

MC14032B Triple Serial Adders

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Triple Serial Adders The MC14032B and MC14038B triple serial adders have the clock and carry reset inputs common to all three adders. The carry is added on the positive going clock transition for the MC14032B, and on the negative going clock transition for the MC14038B. Typical applications include serial arithmetic units, digital correlators, digital servo control systems, datalink computers, and flight control computers.

MC14032B Datasheet (249.82 KB)

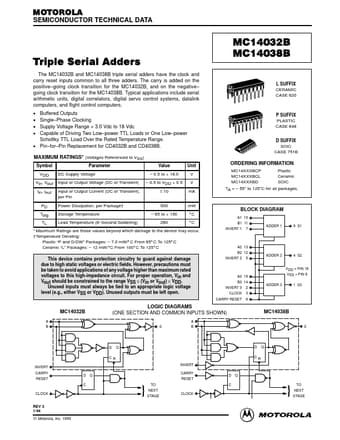

Preview of MC14032B PDF
MC14032B Datasheet Preview Page 2 MC14032B Datasheet Preview Page 3

Datasheet Details

Part number:

MC14032B

Manufacturer:

Motorola

File Size:

249.82 KB

Description:

Triple serial adders.
