MC1403B, MC1403 Datasheet - Motorola

MC1403B Low Voltage Reference

Order this document by MC1403/D MC1403, B Low Voltage Reference A precision band gap voltage reference designed for critical instrumentation and D/A converter applications. This unit is designed to work with D/A converters, up to 12 bits in accuracy, or as a reference for power supply applications. " Output Voltage: 2.5 V 25 mV Input Voltage Range: 4.5 V to 40 V Quiescent Current: 1.2 mA Typical Output Current: 10 mA Temperature Coefficie.

MC1403_MotorolaInc.pdf

This datasheet PDF includes multiple part numbers: MC1403B, MC1403. Please refer to the document for exact specifications by model.

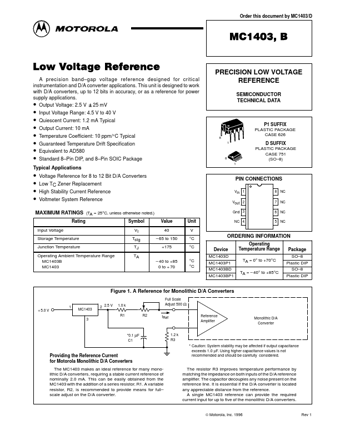

MC1403B Datasheet Preview Page 2 MC1403B Datasheet Preview Page 3

Datasheet Details

Part number:

MC1403B, MC1403

Manufacturer:

Motorola

File Size:

127.99 KB

Description:

Low voltage reference.

Note:

This datasheet PDF includes multiple part numbers: MC1403B, MC1403.
Please refer to the document for exact specifications by model.
