MC14082B Datasheet - Motorola

MC14082B B-Suffix Series CMOS Gates

MOTOROLA SEMICONDUCTOR TECHNICAL DATA B-Suffix Series CMOS Gates The B Series logic gates are constructed with P and N channel enhancement mode devices in a single monolithic structure (Complementary MOS). Their primary use is where low power dissipation and/or high noise immunity is desired. Supply Voltage Range = 3.0 Vdc to 18 Vdc All Outputs Buffered Capable of Driving Two Low power TTL Loads or One Low power Schottky TTL Load Over the Rated Tem.

MC14082B_MotorolaInc.pdf

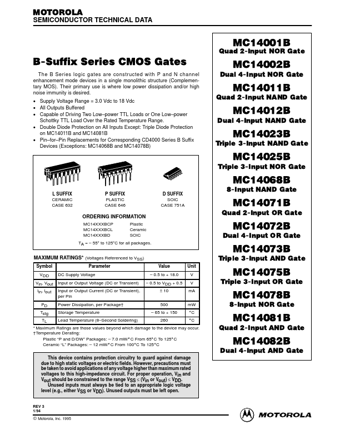

Preview of MC14082B PDF
MC14082B Datasheet Preview Page 2 MC14082B Datasheet Preview Page 3

Datasheet Details

Part number:

MC14082B

Manufacturer:

Motorola

File Size:

327.77 KB

Description:

B-suffix series cmos gates.
