MC146805F2 Datasheet - Motorola

MC146805F2 - 8-BIT MICROPROCESSOR

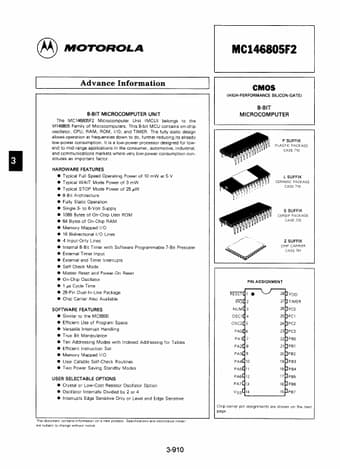

® MOTOROLA MC14680SF2 Advance Information I a-BIT MICROCOMPUTER UNIT The MC146805F2 Microcomputer Unit (MCU) belongs to the M146805 Family of Microcomputers.

This 8-bit MCU contains on-chip oscillator, CPU, RAM, ROM, I/O, and TIMER.

The fully static design allows operation at frequencies down to dc, further reducing its already low-power consumption.

It is a low-power processor designed for lowend to mid-range applications in the consumer, automotive, industrial, and communications markets w

MC146805F2 Features

* Typical Full Speed Operating Power of 10 mW at 5 V

* Typical WAIT Mode Power of 3 mW

* Typical STOP Mode Power of 25 ,."W

* 8-Bit Architecture

* Fully Static Operation

* Single 3- to 6-Volt Supply

* 1089 Bytes of On-Chip User ROM

* 64
