MC146805H2 8-BIT MICROPROCESSOR

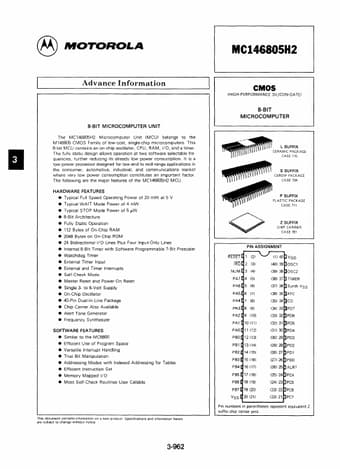

® MOTOROLA MC14680SH2 Advance Information I 8-BIT MICROCOMPUTER UNIT The MC146805H2 Microcomputer Unit (MCU) belongs to the M146805 CMOS Family of low-cost, single-chip microcomputers. This 8-bit MCU contains an on-chip oscillator, CPU, RAM, 1/0, and a timer. The fully static design allows operation at two software selectable frequencies, further reducing its already low power consumption. It is a low-power processor designed for low-end to mid-range applications in the consumer, automotive,.

MC146805H2 Features

* of the MC146805H2 MCU. HARDWARE FEATURES

* Typical Full Speed Operating Power of 20 mW at 5 V

* Typical WAIT Mode Power of 4 mW

* Typical STOP Mode Power of 5 /LW

* 8-Bit Architecture

* Fully Static Operation

* 112 Bytes of On-Chip RAM

* 2048 B
