MC14LC5447

Calling Line Identification(CLID) Receiver with Ring Detector

Motorola

MC14LC5447 Features

* Ring Detector On

* Chip Ring Detect Output for MCU Interrupt Power

* Down Mode, Less than 1 µA Single Supply: + 3.5 to + 6.0 V Pin Selectable Clock Frequencies: 3.68 MHz, 3.58 MHz, or 455 kHz Two Stage Power

* U

MC14LC5447 General Description

OSC Startup (CLKSIN = 1; 3.579 MHz XTAL) Power

*Up Low to FSK (Setup Time) Carrier Detect Acquisition Time End of Data to Carrier Detect High Symbol tDOSC tSUPD tDAQ tDCH Min

* 15

* 8 Typ 2

* 14

* Max

*

*

*

* Unit ms ms ms ms TI.

MC14LC5447 Datasheet (215.36 KB)

MC14LC5447 Datasheet Preview — Preview of MC14LC5447 PDF

Datasheet Details

Part number:

MC14LC5447

Manufacturer:

Motorola

File Size:

215.36 KB

Description:

Calling line identification(clid) receiver with ring detector.

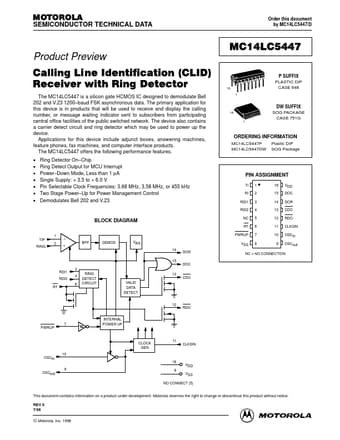

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MC14LC5447/D Product Preview Calling Line Identification (CLID) Receiver with Ring Det.
