MC44825, MC44824 Datasheet - Motorola

MC44825 TV AND VCR PLL TUNING CIRCUITS

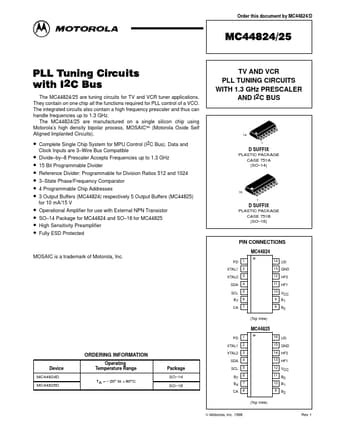

Order this document by MC44824/D MC44824/25 PLL Tuning Circuits with I2C Bus The MC44824/25 are tuning circuits for TV and VCR tuner applications. They contain on one chip all the functions required for PLL control of a VCO. The integrated circuits also contain a high frequency prescaler and thus can handle frequencies up to 1.3 GHz. The MC44824/25 are manufactured on a single silicon chip using Motorola’s high density bipolar process, MOSAIC™ (Motorola Oxide Self Aligned Implanted Circuits). <.

MC44824_Motorola.pdf

This datasheet PDF includes multiple part numbers: MC44825, MC44824. Please refer to the document for exact specifications by model.
