MC4482 N-Channel MOSFET

MC4482 Description

Freescale N-Channel 100-V (D-S) MOSFET These miniature surface mount MOSFETs utilize a high cell density trench process to provide low rDS(on) and to .

MC4482 Applications

* are DC-DC converters and power management in portable and battery-powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones. AO4482 / MC4482 PRODUCT SUMMARY VDS (V) rDS(on) m(Ω) 100 78 @ VGS = 10V 92 @ VGS = 4.5V ID (A) 5.2 4.8
* Low rDS(on) provid

📥 Download Datasheet

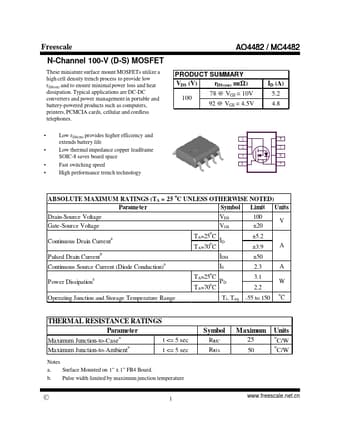

Preview of MC4482 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC4482
Manufacturer
Freescale
File Size
159.00 KB
Datasheet
MC4482-Freescale.pdf
Description
N-Channel MOSFET
