MC74VHC132 Quad 2-Input NAND Schmitt Trigger

Motorola

Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quad 2-Input NAND Schmitt Trigger The MC74VHC132 is an advanced high speed CMOS Schmitt NAND trigger fabricate.

📥 Download Datasheet

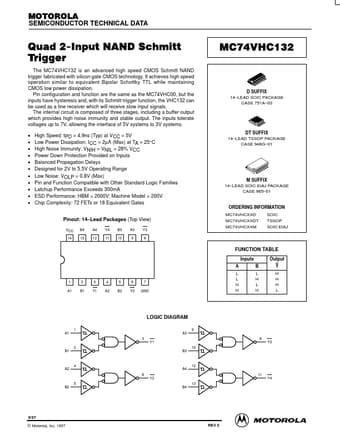

MC74VHC132 Datasheet Preview — Preview of MC74VHC132 PDF

Datasheet Specifications

Part number: MC74VHC132
Manufacturer: Motorola
File Size: 152.40 KB
Datasheet: MC74VHC132_Motorola.pdf
Description: Quad 2-Input NAND Schmitt Trigger

Applications

* of any voltage higher than maximum rated voltages to this high
* impedance circuit. For proper operation, Vin and Vout should be constrained to the range GND (Vin or Vout) VCC. Unused inputs must always be tied to an appropriate logic voltage level (e. g. , either GND or V CC ). Unused outputs m
