MC74VHC139 Datasheet - ON Semiconductor

MC74VHC139 - Dual 2-to-4 Decoder/Demultiplexer

MC74VHC139 Dual 2-to-4 Decoder/ Demultiplexer The MC74VHC139 is an advanced high speed CMOS 2 to 4 decoder/ demultiplexer fabricated with silicon gate CMOS technology.

It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation.

When the device is enabled (E = low), it can be used for gating or as a data input for demultiplexing operations.

When the enable input is held high, all four outputs are fixed high, independen

MC74VHC139_ONSemiconductor.pdf

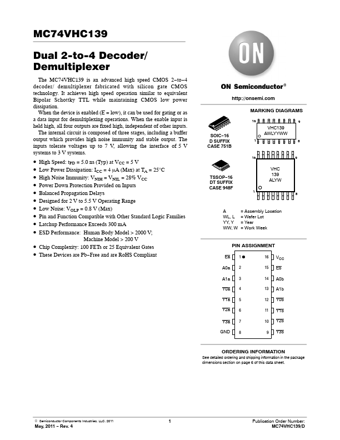

Preview of MC74VHC139 PDF
MC74VHC139 Datasheet Preview Page 2 MC74VHC139 Datasheet Preview Page 3

Datasheet Details

Part number:

MC74VHC139

Manufacturer:

ON Semiconductor ↗

File Size:

129.96 KB

Description:

Dual 2-to-4 decoder/demultiplexer.
