MC74VHC126 - Quad Bus Buffer

MC74VHC126 Quad Bus Buffer with 3 State Control Inputs The MC74VHC126 is a high speed CMOS quad bus buffer fabricated with silicon gate CMOS technology.

It achieves noninverting high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation.

The MC74VHC126 requires the 3 state control input (OE) to be set Low to place the output into high impedance.

The internal circuit is composed of three stages, including a buffer output which prov

MC74VHC126_ONSemiconductor.pdf

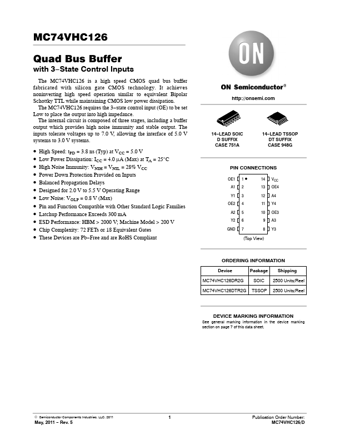

Preview of MC74VHC126 PDF
MC74VHC126 Datasheet Preview Page 2 MC74VHC126 Datasheet Preview Page 3

Datasheet Details

Part number:

MC74VHC126

Manufacturer:

ON Semiconductor ↗

File Size:

274.92 KB

Description:

Quad bus buffer.
