MC74VHC125 - Quad Bus Buffer

ON Semiconductor

📥 Download Datasheet

MC74VHC125 Datasheet Preview — Preview of MC74VHC125 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MC74VHC125
Manufacturer	ON Semiconductor ↗
File Size	271.12 KB
Description	Quad Bus Buffer
Datasheet	MC74VHC125_ONSemiconductor.pdf

MC74VHC125 Product details

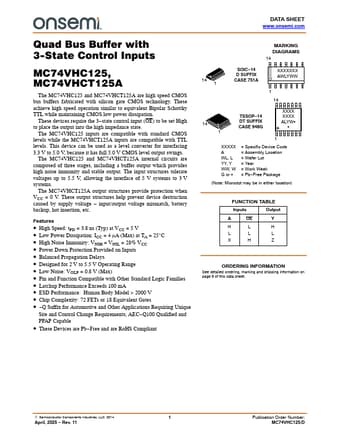

Features

High Speed: tPD = 3.8 ns (Typ) at VCC = 5 V.
Low Power Dissipation: ICC = 4 mA (Max) at TA = 25°C.
High Noise Immunity: VNIH = VNIL = 28% VCC.
Power Down Protection Provided on Inputs.
Balanced Propagation Delays.
Designed for 2 V to 5.5 V Operating Range.
Low Noise: VOLP = 0.8 V (Max).
Pin and Function Compatible with Other Standard Logic Families.
Latchup Performance Exceeds 100 mA.
ESD Performance: Huma.
