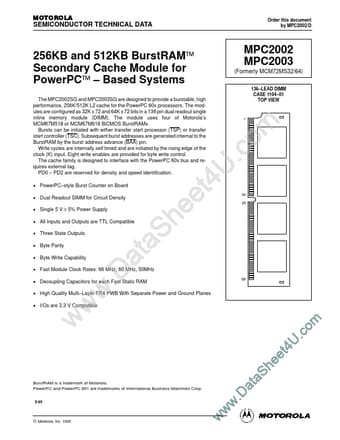

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MPC2002/D 256KB and 512KB BurstRAM™ Secondary Cache Module for PowerPC™ Based Systems The MPC2002SG and MPC2003SG are designed to provide a burstable, high performance, 256K/512K L2 cache for the PowerPC 60x processors. The modules are configured as 32K x 72 and 64K x 72 bits in a 136 pin dual readout single inline memory module (DIMM). The module uses four of Motorola’s MCM67M518 or MCM67M618 BiCMOS BurstRAMs. Bursts can .

MPC2003 Features

* 2002

* MPC2003 6 MOTOROLA FAST SRAM DC OPERATING CONDITIONS AND CHARACTERISTICS (VCC = 5.0 V ± 5%, TA = 0 to + 70°C, Unless Otherwise Noted) RECOMMENDED OPERATING CONDITIONS (Voltages referenced to VSS = 0 V) Parameter Supply Voltage (Operating Voltage Range) Input High Voltage Input Low Vol
