MPC2005 - 256KB and 512KB BurstRAM

This page provides the datasheet information for the MPC2005, a member of the MPC2004 256KB and 512KB BurstRAM family.

Datasheet Summary

Description

of the cache module.

The module family pinout will support 5 V and 3.3 V components for a clear path to lower voltage and power savings.

Both power supplies must be connected.

Features

  • d all liability, including without limitation consequential or incidental damages. “Typical” parameters can and do vary in different.

📥 Download Datasheet

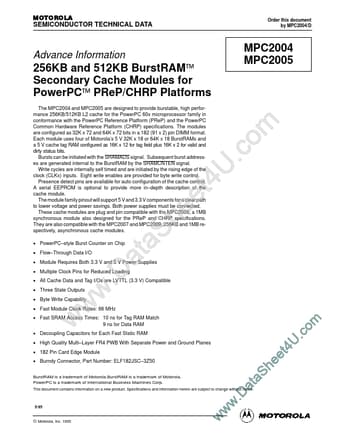

Datasheet preview – MPC2005

Datasheet Details

Part number MPC2005
Manufacturer Motorola
File Size 73.93 KB
Description 256KB and 512KB BurstRAM
Datasheet download datasheet MPC2005 Datasheet
