MRF3010 - LATERAL N-CHANNEL BROADBAND RF POWER MOSFET

MRF3010 Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MRF3010/D The RF MOSFET Line RF Power Field Effect Transistor N *Channel Enhan.

MRF3010 Features

* MOTOROLA RF DEVICE DATA MRF3010 5 www. DataSheet4U. com (Scale 1:1) Figure 5. Photomaster for MRF3010 (Reduced 25% in printed data book, DL110/D) MRF3010 6 MOTOROLA RF DEVICE DATA C13 VGG INPUT (NOTE 1) L1 C6 C10 C11 R1 C5 C4 R2 C9 R4 L2 R3 L3 (NOTE 2)
* + VDD INPUT INPUT www. DataSh

MRF3010 Applications

* D
* Guaranteed Performance @ 1.6 GHz, 28 Volts Output Power = 10 Watts Minimum Gain = 9.5 dB @ 10 Watts Minimum Efficiency = 45% @ 10 Watts
* High Gain, Rugged Device
* Bottom Side Source Eliminates DC Isolators, Reducing Common Mode Inductances
* Broadband Performan

📥 Download Datasheet

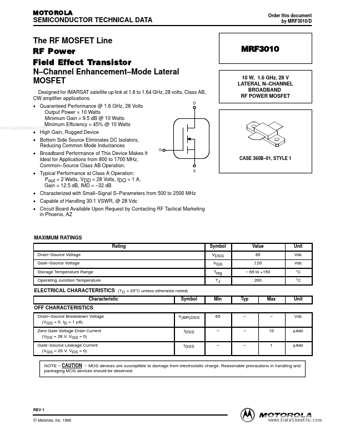

Preview of MRF3010 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MRF3010
Manufacturer
Motorola
File Size
108.76 KB
Datasheet
MRF3010_Motorola.pdf
Description
LATERAL N-CHANNEL BROADBAND RF POWER MOSFET
