MRF300BN, MRF300AN Datasheet - NXP

MRF300BN RF Power LDMOS Transistors

NXP Semiconductors Technical Data RF Power LDMOS Transistors High Ruggedness N Channel Enhancement Mode Lateral MOSFETs These devices are designed for use in HF and VHF communications, industrial, scientific and medical (ISM) and broadcast and aerospace applications. The devices are extremely rugged and exhibit high performance up to 250 MHz. Typical Performance: VDD = 50 Vdc Frequency (MHz) Signal Type Pout Gps D (W) (dB) (%) 13.56 (1) 27 (2) 40.68 (3) 50 (4) 81.36 .

MRF300BN Features

* D G

* Mirror pinout versions (A and B) to simplify use in a push

* pull, two

* up configuration S

* Characterized from 30 to 50 V

* Suitable for linear application

* Integrated ESD protection with greater negative gate

* source voltage range for improved Clas

MRF300AN-NXP.pdf

This datasheet PDF includes multiple part numbers: MRF300BN, MRF300AN. Please refer to the document for exact specifications by model.

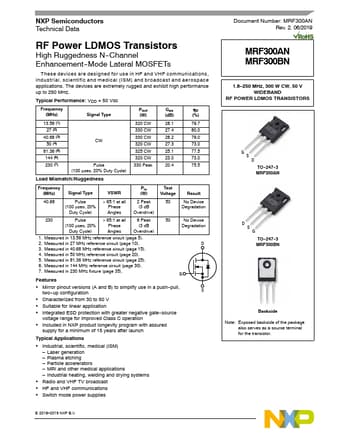

MRF300BN Datasheet Preview Page 2 MRF300BN Datasheet Preview Page 3

Datasheet Details

Part number:

MRF300BN, MRF300AN

Manufacturer:

NXP ↗

File Size:

1.25 MB

Description:

Rf power ldmos transistors.

Note:

This datasheet PDF includes multiple part numbers: MRF300BN, MRF300AN.
Please refer to the document for exact specifications by model.
