SN74LS390

DUAL DECADE COUNTER / DUAL 4-STAGE BINARY COUNTER

SN74LS390 Features

* s no warranty, representation or guarantee regarding the suitability of its products for any p

SN74LS390 General Description

Each half of the SN54 / 74LS393 operates in the Modulo 16 binary sequence, as indicated in the รท 16 Truth Table. The first flip-flop is triggered by HIGH-to-LOW transitions of the CP input signal. Each of the other flip-flops is triggered by a HIGH-to-LOW transition of the Q output of the preceding .

SN74LS390 Datasheet (193.57 KB)

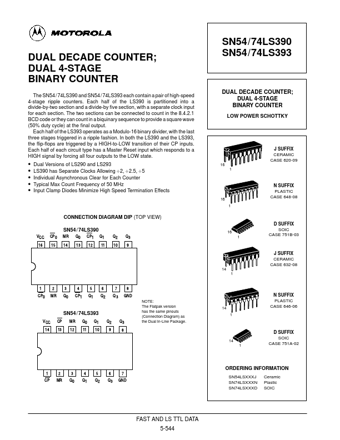

Preview of SN74LS390 PDF

Datasheet Details

Part number:

SN74LS390

Manufacturer:

Motorola

File Size:

193.57 KB

Description:

Dual decade counter / dual 4-stage binary counter.
DUAL DECADE COUNTER; DUAL 4-STAGE BINARY COUNTER The SN54 / 74LS390 and SN54 / 74LS393 each contain a pair of high-speed 4-stage ripple counters. Each.
