SN74LS398, SN74LS398D - QUAD 2-PORT REGISTER

Motorola

📥 Download Datasheet

SN74LS398 Datasheet Preview — This datasheet PDF includes multiple part numbers: SN74LS398, SN74LS398D. Please refer to the document for exact specifications by model.

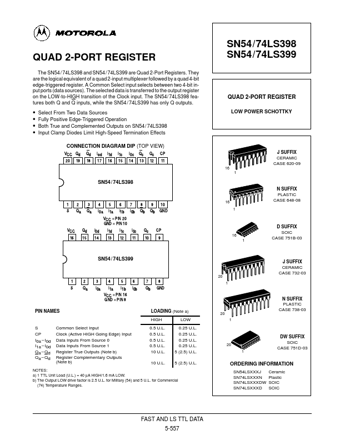

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SN74LS398, SN74LS398D
Manufacturer	Motorola
File Size	209.05 KB
Description	QUAD 2-PORT REGISTER
Datasheet	SN74LS398D_MotorolaInc.pdf
Note	This datasheet PDF includes multiple part numbers: SN74LS398, SN74LS398D. Please refer to the document for exact specifications by model.

SN74LS398 Product details

Description

The SN54 / 74LS398 and SN54 / 74LS399 are high-speed Quad 2-Port Registers.

Features

both Q and Q inputs, while the SN54/ 74LS399 has only Q outputs.
Select From Two Data Sources.
Fully Positive Edge-Triggered Operation.
Both True and Complemented Outputs on SN54/ 74LS398.
Input Clamp Diodes Limit High-Speed Termination Effects.
