SN74LS393, SN74LS390 Datasheet - Motorola

SN74LS393 DUAL DECADE COUNTER / DUAL 4-STAGE BINARY COUNTER

DUAL DECADE COUNTER; DUAL 4-STAGE BINARY COUNTER The SN54 / 74LS390 and SN54 / 74LS393 each contain a pair of high-speed 4-stage ripple counters. Each half of the LS390 is partitioned into a divide-by-two section and a divide-by five section, with a separate clock input for each section. The two sections can be connected to count in the 8.4.2.1 BCD code or they can count in a biquinary sequence to provide a square wave (50% duty cycle) at the final output. Each half of the LS393 operates as a Mo.

SN74LS390_MotorolaInc.pdf

This datasheet PDF includes multiple part numbers: SN74LS393, SN74LS390. Please refer to the document for exact specifications by model.

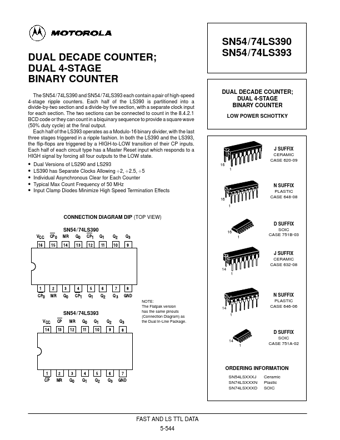

SN74LS393 Datasheet Preview Page 2 SN74LS393 Datasheet Preview Page 3

Datasheet Details

Part number:

SN74LS393, SN74LS390

Manufacturer:

Motorola

File Size:

193.57 KB

Description:

Dual decade counter / dual 4-stage binary counter.

Note:

This datasheet PDF includes multiple part numbers: SN74LS393, SN74LS390.
Please refer to the document for exact specifications by model.
