MPSA14 Datasheet - Multicomp

MPSA14 NPN Darlington Transistor

Collector Emitter Voltage Collector Cut off Current Emitter Cut off Current Symbol VCES ICBO IEBO DC Current.

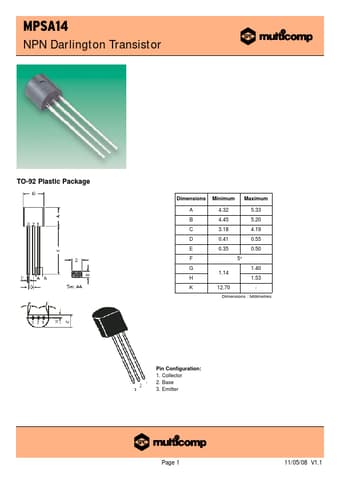

MPSA14 NPN Darlington Transistor TO-92 Plastic Package Dimensions Minimum Maximum A 4.32 5.33 B 4.45 5.20 C 3.18 4.19 D 0.41 0.55 E 0.35 0.50 F 5° G 1.40 1.14 H 1.53 K 12.70 - Dimensions : Millimetres Pin Configuration: 1. Collector 2. Base 3. Emitter Page 1 11/05/08 V1.1 MPSA14 NPN Darlington Transistor Absolute Maximum Ratings Parameters Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Continuous Power Dissipation at Ta = 25°C Derate Abov.

MPSA14-Multicomp.pdf

Preview of MPSA14 PDF
MPSA14 Datasheet Preview Page 2 MPSA14 Datasheet Preview Page 3

Datasheet Details

Part number:

MPSA14

Manufacturer:

Multicomp

File Size:

50.65 KB

Description:

Npn darlington transistor.
