NTE1209MC, NTE0303MC DC/DC Converters

NTE1209MC Description

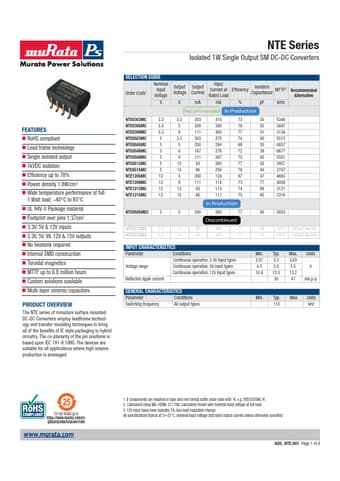

www.murata.com NTE Series Isolated 1W Single Output SM DC-DC Converters SELECTION GUIDE Order Code1 Nominal Input Voltage V Output Voltage V Ou.

NTE1209MC Features

* RoHS compliant
* Lead frame technology
* Single isolated output
* 1kVDC isolation
* Efficiency up to 78%
* Power density 1.8W/cm3
* Wide temperature performance at full 1 Watt load,
* 40°C to 85°C
* UL 94V-0 Package material

NTE1209MC Applications

* where high volume production is envisaged. NTE0303MC 3.3 3.3 303 410 73 NTE0305MC 3.3 5 200 390 78 NTE0309MC 3.3 9 111 400 77 NTE0503MC 5 3.3 303 270 74 NTE0505MC 5 5 200 294 68 NTE0506MC 5 6 167 278 72 NTE0509MC 5 9 111 267 75 NTE0512MC 5 12 83 260 77

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NTE1209MC, NTE0303MC. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NTE1209MC, NTE0303MC
Manufacturer
Murata
File Size
217.61 KB
Datasheet
NTE0303MC-Murata.pdf
Description
DC/DC Converters
Note
This datasheet PDF includes multiple part numbers: NTE1209MC, NTE0303MC.
Please refer to the document for exact specifications by model.
