NTE1200 - Integrated Circuit Color TV Chroma Processor

Datasheet Summary

Features

  • D AFPC & ACC detector employs sample and Hold techniques D Low output impedance D Only the initial crystal filter tuning is required no killer and ACC adjustment at anytime D Few external components required D Compensation for temperature and Supply Variations D Compatible with NTE1130 Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Supply Voltage, VCC.
  • . . 13.2V Chroma.

📥 Download Datasheet

Datasheet preview – NTE1200

Datasheet Details

Part number NTE1200
Manufacturer NTE
File Size 24.47 KB
Description Integrated Circuit Color TV Chroma Processor
Datasheet download datasheet NTE1200 Datasheet
Additional preview pages of the NTE1200 datasheet.

📁 Similar Datasheet

  • NTE1205MC - DC/DC Converters (Murata)
  • NTE1209MC - DC/DC Converters (Murata)
  • NTE1212MC - DC/DC Converters (Murata)
  • NTE1215MC - DC/DC Converters (Murata)
  • NTE1012 - Integrated Circuit Module - Hybrid (NTE Electronics)
  • NTE1026 - Integrated Circuit Module (NTE Electronics)
  • NTE1039 - Integrated Circuit FM IF Amplifier (NTE Electronics)
  • NTE1052 - Integrated Circuit Low Noise Preamp (NTE Electronics)
  • NTE1053 - Integrated Circuit AF High Gain Preamplifier (NTE Electronics)
  • NTE1056 - Integrated Circuit FM Stereo Multiplex Demodulator (NTE Electronics)
Other Datasheets by NTE
  • NTE120 - General Purpose Selenium Rectifier
  • NTE1206 - Integrated Circuit Phase Lock Loop (PLL) Stereo Decoder
  • NTE1208 - Integrated Circuit CMOS / Phase Comparator
  • NTE12 - Silicon Complementary Transistors
  • NTE121 - Germanium PNP Transistor Audio Frequency Power Amplifier
  • NTE1210 - Integrated Circuit Preamp
  • NTE1213 - Integrated Circuit TV Video IF Amp
  • NTE1214 - Integrated Circuit AM Tuner System

Full PDF Text Transcription

Click to expand full text

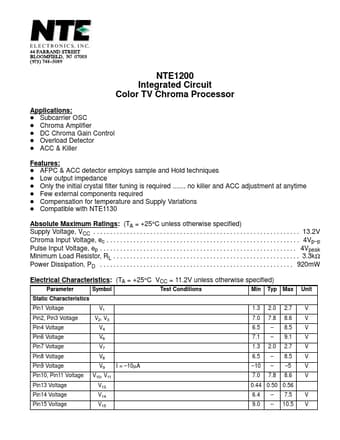

NTE1200 Integrated Circuit Color TV Chroma Processor Applications: D Subcarrier OSC D Chroma Amplifier D DC Chroma Gain Control D Overload Detector D ACC & Killer Features: D AFPC & ACC detector employs sample and Hold techniques D Low output impedance D Only the initial crystal filter tuning is required ....... no killer and ACC adjustment at anytime D Few external components required D Compensation for temperature and Supply Variations D Compatible with NTE1130 Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13.2V Chroma Input Voltage, ec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
