NTE12 - Silicon Complementary Transistors

This page provides the datasheet information for the NTE12, a member of the NTE11 Silicon Complementary Transistors family.

Datasheet Summary

Description

The NTE11 (NPN) and NTE12 (PNP) are silicon complementary transistors in a TO92 type case designed for use in low

frequency output amplifier, DC converter, and strobe applications.

Features

  • D High Collector Current: IC = 5A Max D Low Collector.
  • Emitter Saturation Voltage Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector.
  • Base Voltage, VCBO NTE11.
  • 40V NTE12.
  • 27V Collector.
  • Emitter Voltage,.

📥 Download Datasheet

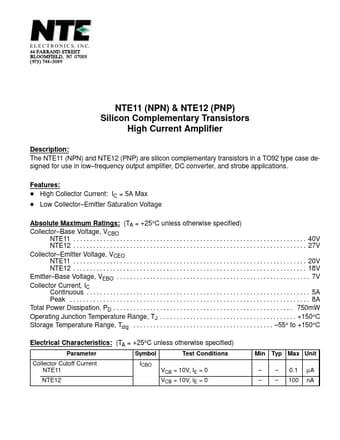

Datasheet preview – NTE12
