Datasheet4U Logo Datasheet4U.com

2SK3571 - Switching N-Channel MOSFET

Datasheet Summary

Description

The 2SK3571 is N-channel MOS FET device that

Features

  • a low on-state resistance and excellent switching characteristics, designed for low voltage high current.

📥 Download Datasheet

Datasheet preview – 2SK3571

Datasheet Details

Part number 2SK3571
Manufacturer NEC Electronics
File Size 82.63 KB
Description Switching N-Channel MOSFET
Datasheet download datasheet 2SK3571 Datasheet
Additional preview pages of the 2SK3571 datasheet.

📁 Similar Datasheet

  • 2SK3571 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK3571-S - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK3571-Z - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK3571-ZK - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK357 - N-Channel MOSFET (Toshiba)
  • 2SK357 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK3570 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK3570-S - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK3570-Z - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK3570-ZK - N-Channel MOSFET Transistor (Inchange Semiconductor)
Other Datasheets by NEC Electronics
  • 2SK3570 - Switching N-Channel MOSFET
  • 2SK3572 - Switching N-Channel MOSFET
  • 2SK3573 - Switching N-Channel MOSFET
  • 2SK3574 - Switching N-Channel MOSFET
  • 2SK3575 - Switching N-Channel MOSFET
  • 2SK3576 - Switching N-Channel MOSFET
  • 2SK3577 - Switching N-Channel MOSFET
  • 2SK1749 - Switching N-Channel Power MOS FET

Full PDF Text Transcription

Click to expand full text

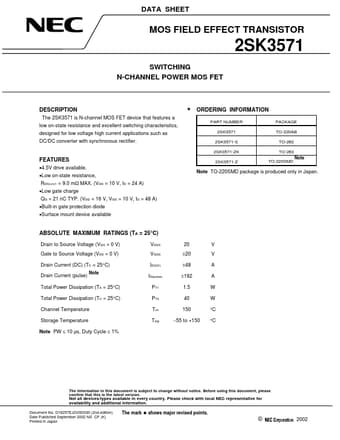

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3571 SWITCHING N-CHANNEL POWER MOS FET DESCRIPTION The 2SK3571 is N-channel MOS FET device that features a low on-state resistance and excellent switching characteristics, designed for low voltage high current applications such as DC/DC converter with synchronous rectifier. 5 ORDERING INFORMATION PART NUMBER 2SK3571 2SK3571-S 2SK3571-ZK PACKAGE TO-220AB TO-262 TO-263 TO-220SMD Note FEATURES •4.5V drive available. •Low on-state resistance, RDS(on)1 = 9.0 mΩ MAX. (VGS = 10 V, ID = 24 A) •Low gate charge QG = 21 nC TYP. (VDD = 16 V, VGS = 10 V, ID = 48 A) •Built-in gate protection diode •Surface mount device available 2SK3571-Z Note TO-220SMD package is produced only in Japan.
Published: |
