2SA1977 - PNP EPITAXIAL SILICON TRANSISTOR

2SA1977 Description

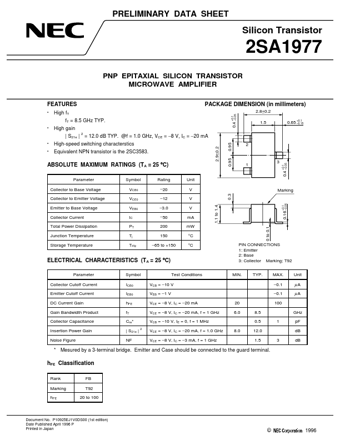

DATA SHEET PRELIMINARY DATA SHEET Silicon Transistor 2SA1977 PNP EPITAXIAL SILICON TRANSISTOR MICROWAVE AMPLIFIER .

2SA1977 Features

* PACKAGE DIMENSION (in millimeters) _0.2 2.8+ 0.4 +0.1
* 0.05 High fT fT = 8.5 GHz TYP. High gain | S21e | = 12.0 dB TYP. @f = 1.0 GHz, VCE =
* 8 V, IC =
* 20 mA 2 1.5 0.65 +0.1
* 0.15
* 0.95
* Equivalent NPN transistor is the 2S

📥 Download Datasheet

Preview of 2SA1977 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1977
Manufacturer
NEC
File Size
58.64 KB
Datasheet
2SA1977_NEC.pdf
Description
PNP EPITAXIAL SILICON TRANSISTOR
