2SA1988, PNP SILICON TRANSISTOR

DATA SHEET Silicon Power Transistor 2SA1988 PNP SILICON TRANSISTOR POWER AMPLIFIER INDUSTRIAL USE .
The 2SA1988 is PNP Silicon Power Transistor that designed for audio frequency power amplifier. High.

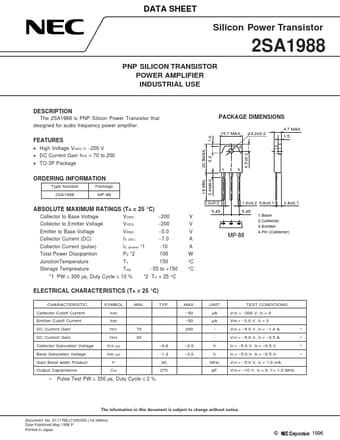

datasheet Preview Page 1 from Datasheet4u.com

2SA1988_NEC.pdf

2SA1988 Datasheet Preview — Preview of 2SA1988 PDF

Datasheet Details

Part number:

2SA1988

Manufacturer:

NEC

File Size:

47.59 KB

Description:

PNP SILICON TRANSISTOR

Features

* High Voltage VCEO =
* 200 V
* DC Current Gain hFE = 70 to 200
* TO-3P Package 1.0 φ 3.2±0.2 4.7 MAX. 1.5 20.5MAX. 5.0 4 4.5±0.2 1.0±0.2 0.6±0.1 5.45 1 19 MIN. 3.4MAX. 2 3 ORDERING INFORMATION Type Number 2SA1988 Package MP-88 ABSOLUTE MAXIMUM RATINGS (TA =

Applications

* of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a particular application. Standard: Computers, office equipment, communications equipment, test and measurement equipment, audio and visual equipment, home electronic
