2SK2364 N-Channel MOSFET

2SK2364 Description

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK2363/2SK2364 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE .
The 2SK2363/2SK2364 is N-Channel MOS Field Effect Transistor designed for high voltage switching applications.

2SK2364 Features

* 10.0±0.3
* Low On-Resistance 2SK2363: RDS (on) = 0.5 Ω (VGS = 10 V, ID = 4.0 A) 2SK2364: RDS (on) = 0.6 Ω (VGS = 10 V, ID = 4.0 A) 3.2±0.2 4.5±0.2 2.7±0.2 Drain to Source Voltage (2SK2363/2SK2364) Gate to Source Voltage Drain Current (DC) Drain Current (pulse)
* Total Power Dissipati

📥 Download Datasheet

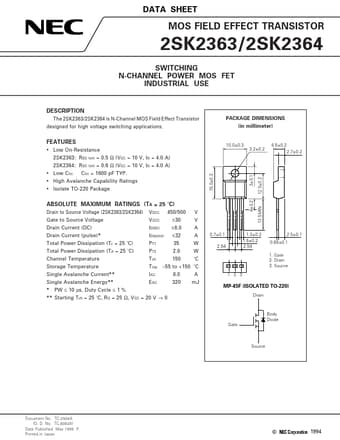

Preview of 2SK2364 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK2364
Manufacturer
NEC
File Size
115.31 KB
Datasheet
2SK2364_NEC.pdf
Description
N-Channel MOSFET
