2SK2484 - N-CHANNEL POWER MOSFET

Name: 2SK2484
SKU: 2SK2484-1587109

NEC

📥 Download Datasheet

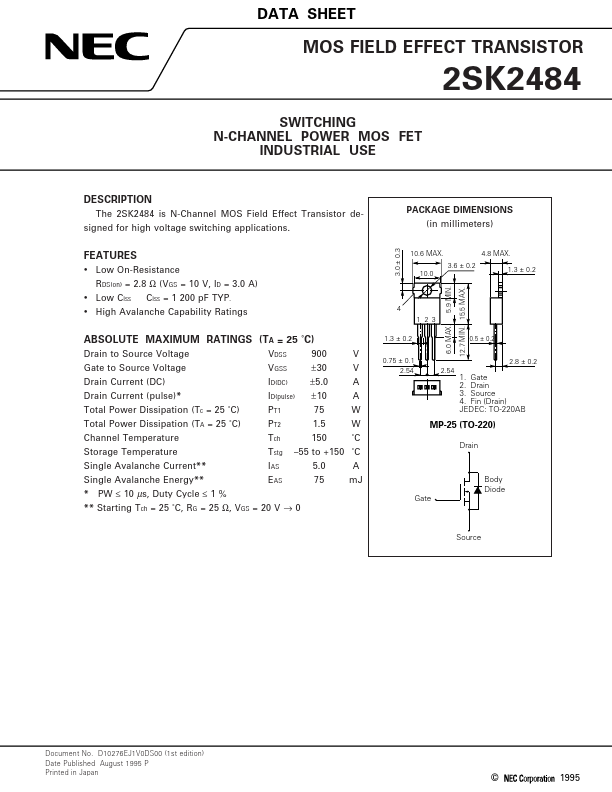

2SK2484 Datasheet Preview — Preview of 2SK2484 PDF

Datasheet Details

Part number	2SK2484
Manufacturer	NEC
File Size	116.13 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	2SK2484-NEC.pdf

2SK2484 Product details

Description

The 2SK2484 is N-Channel MOS Field Effect Transistor de- signed for high voltage switching applications.PACKAGE DIMENSIONS (in millimeters) 3.0 ± 0.3 6.0 MAX.5.9 MIN.12.7 MIN.15.5 MAX.

Features

Low On-Resistance RDS(on) = 2.8 Ω (VGS = 10 V, ID = 3.0 A).
Low Ciss Ciss = 1 200 pF TYP.
High Avalanche Capability Ratings.
