2SK3377 - N-Channel MOSFET

2SK3377 Description

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3377 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE ORDERING INFORMATION PART NUMBER 2SK3377 2SK3377-Z P.
The 2SK3377 is N-Channel MOS Field Effect Transistor designed for high current switching applications. Low On-state Resistance 5 5.

2SK3377 Features

* Low On-state Resistance 5 5 5 RDS(on)1 = 44 mΩ MAX. (VGS = 10 V, ID = 10 A) RDS(on)2 = 78 mΩ MAX. (VGS = 4.0 V, ID = 10 A)
* Low Ciss : Ciss = 760 pF TYP.
* Built-in Gate Protection Diode
* TO-251/TO-252 package (TO-251) ABSOLUTE MAXIMUM RATINGS (TA = 25 °C) Drain

📥 Download Datasheet

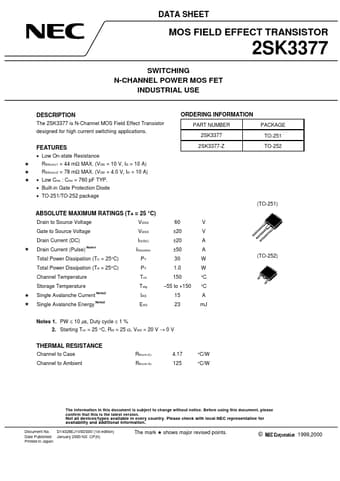

Preview of 2SK3377 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3377
Manufacturer
NEC
File Size
42.07 KB
Datasheet
2SK3377_NEC.pdf
Description
N-Channel MOSFET
