2SK3479 SWITCHING N-CHANNEL POWER MOSFET

2SK3479 Description

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3479 SWITCHING N-CHANNEL POWER MOS FET .
The 2SK3479 is N-channel MOS Field Effect Transistor designed for high current switching applications.

2SK3479 Features

* Super low on-state resistance: RDS(on)1 = 11 mΩ MAX. (VGS = 10 V, ID = 42 A) RDS(on)2 = 13 mΩ MAX. (VGS = 4.5 V, ID = 42 A)
* Low Ciss: Ciss = 11000 pF TYP.
* Built-in gate protection diode Note TO-220SMD package is produced only in Japan. (TO-220AB) ABSOLUTE MAXIMUM RATI

📥 Download Datasheet

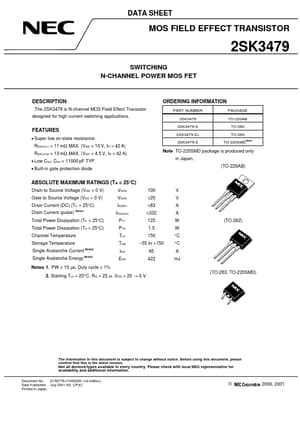

Preview of 2SK3479 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3479
Manufacturer
NEC
File Size
76.83 KB
Datasheet
2SK3479_NEC.pdf
Description
SWITCHING N-CHANNEL POWER MOSFET
