D75104 Features

* Internal memory

* Program memory (ROM) : 8068 × 8 bits (µ PD75108) : 6016 × 8 bits (µ PD75106) : 4096 × 8 bits (µ PD75104)

* Data memory (RAM) : 512 × 4 bits ( µPD75108) : 320 × 4 bits ( µPD75106, 75104)

* New architecture “75X series” rivaling 8-bit microcomputers

D75104 General Description

µPD75108 is a 4-bit single-chip microcomputer integrating timer/event counters, serial interface, and vector interrupt function, in addition to a CPU, ROM, RAM, and I/O ports, on a single chip. Operating at high speeds, the microcomputer allows data to be manipulated in units of 1, 4, or 8 bits. In .

D75104 Datasheet (440.84 KB)

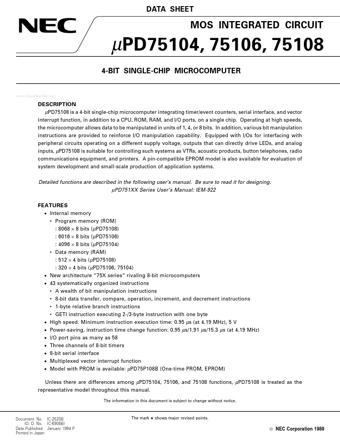

Preview of D75104 PDF

Datasheet Details

Part number:

D75104

Manufacturer:

NEC

File Size:

440.84 KB

Description:

Upd75104.
