D75112CW

4-Bit Single Chip-Microcomputer

D75112CW Features

* Higher reliability than µPD75116

* Architecture "75X" equivalent to 8-bit microcomputer

* Minimum instruction execution time (high-speed operation): 0.95 µs (when operated at 4.19 MHz and 5 V)

* Instruction execution variable function: 0.95µs/1.91µs/ 15.3 µs (when o

D75112CW General Description

The µPD75116(A) is one of the 4-bit single-chip microcomputer 75X series. The µPD75116(A) is a product with the extended ROM capacity of the µPD75108(A). In addition of high-speed operations, it can manipulate data in units of 1, 4 and 8 bits. In particular, the I/O operation of the µPD75116 have be.

D75112CW Datasheet (470.35 KB)

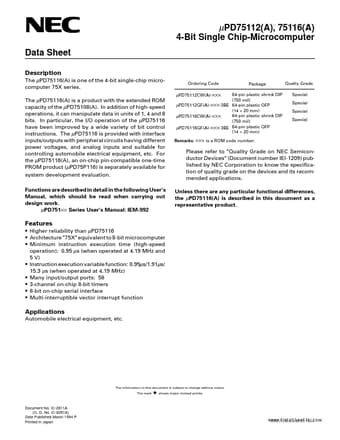

Preview of D75112CW PDF

Datasheet Details

Part number:

D75112CW

Manufacturer:

NEC

File Size:

470.35 KB

Description:

4-bit single chip-microcomputer.
