D75116GF

UPD75116GF

D75116GF Features

* Higher reliability than µPD75116

* Architecture "75X" equivalent to 8-bit microcomputer

* Minimum instruction execution time (high-speed operation): 0.95 µs (when operated at 4.19 MHz and 5 V)

* Instruction execution variable function: 0.95µs/1.91µs/ 15.3 µs (when o

D75116GF General Description

The µPD75116(A) is one of the 4-bit single-chip microcomputer 75X series. The µPD75116(A) is a product with the extended ROM capacity of the µPD75108(A). In addition of high-speed operations, it can manipulate data in units of 1, 4 and 8 bits. In particular, the I/O operation of the µPD75116 have be.

D75116GF Datasheet (499.50 KB)

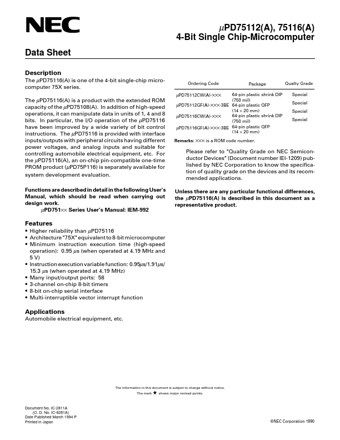

Preview of D75116GF PDF

Datasheet Details

Part number:

D75116GF

Manufacturer:

NEC

File Size:

499.50 KB

Description:

upd75116gf.
