K3454 - 2SK3454

Datasheet Summary

Description

The 2SK3454 is N-channel MOS FET device that

Features

  • a low on-state resistance and excellent switching characteristics, and designed for high voltage.

📥 Download Datasheet

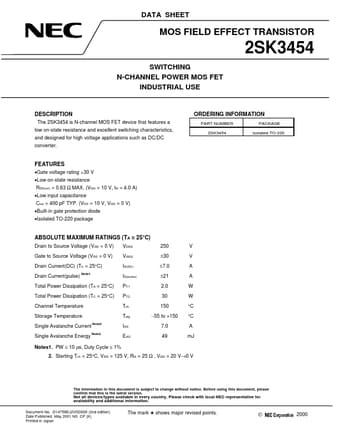

Datasheet preview – K3454

Datasheet Details

Part number K3454
Manufacturer NEC
File Size 59.35 KB
Description 2SK3454
Datasheet download datasheet K3454 Datasheet
Additional preview pages of the K3454 datasheet.

📁 Similar Datasheet

  • K345 - Silicon N-Channel MOSFET (Hitachi)
  • K3450-01 - n-Channel Silicon Power MOSFET (Fuji)
  • K3451 - 2SK3451 (Fuji Electric)
  • K3403 - 2SK3403 (Toshiba Semiconductor)
  • K3407 - 2SK3407 (Toshiba)
  • K3413-01 - Two-color detector (Hamamatsu)
  • K3413-02 - Two-color detector (Hamamatsu)
  • K3413-05 - Two-color detector (Hamamatsu)
  • K3413-08 - Two-color detector (Hamamatsu)
  • K3413-09 - Two-color detector (Hamamatsu)
Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text
DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3454 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE DESCRIPTION The 2SK3454 is N-channel MOS FET device that features a low on-state resistance and excellent switching characteristics, and designed for high voltage applications such as DC/DC converter. ORDERING INFORMATION PART NUMBER PACKAGE 2SK3454 Isolated TO-220 FEATURES •Gate voltage rating ±30 V •Low on-state resistance RDS(on) = 0.63 Ω MAX. (VGS = 10 V, ID = 4.0 A) •Low input capacitance Ciss = 400 pF TYP.
