K3457 - 2SK3457

Datasheet Summary

Description

The 2SK3457 is N-channel DMOS FET device that

Features

  • a low gate charge and excellent switching characteristics, designed for high voltage.

📥 Download Datasheet

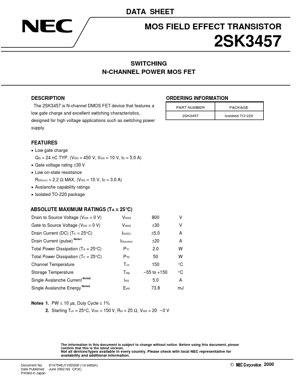

Datasheet preview – K3457

Datasheet Details

Part number K3457
Manufacturer NEC
File Size 72.07 KB
Description 2SK3457
Datasheet download datasheet K3457 Datasheet
Additional preview pages of the K3457 datasheet.

📁 Similar Datasheet

  • K345 - Silicon N-Channel MOSFET (Hitachi)
  • K3450-01 - n-Channel Silicon Power MOSFET (Fuji)
  • K3451 - 2SK3451 (Fuji Electric)
  • K3403 - 2SK3403 (Toshiba Semiconductor)
  • K3407 - 2SK3407 (Toshiba)
  • K3413-01 - Two-color detector (Hamamatsu)
  • K3413-02 - Two-color detector (Hamamatsu)
  • K3413-05 - Two-color detector (Hamamatsu)
  • K3413-08 - Two-color detector (Hamamatsu)
  • K3413-09 - Two-color detector (Hamamatsu)
Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text
DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3457 SWITCHING N-CHANNEL POWER MOS FET DESCRIPTION The 2SK3457 is N-channel DMOS FET device that features a low gate charge and excellent switching characteristics, designed for high voltage applications such as switching power supply. ORDERING INFORMATION PART NUMBER PACKAGE 2SK3457 Isolated TO-220 FEATURES • Low gate charge QG = 24 nC TYP. (VDD = 450 V, VGS = 10 V, ID = 5.0 A) • Gate voltage rating ±30 V • Low on-state resistance RDS(on) = 2.2 Ω MAX. (VGS = 10 V, ID = 3.
