The 2SK3430 is N-channel MOS Field Effect Transistor designed for high current switching applications.

Features

  • Super low on-state resistance: 5 5 RDS(on)1 = 7.3 mΩ MAX. (VGS = 10 V, ID = 40 A) RDS(on)2 = 15 mΩ MAX. (VGS = 4 V, ID = 40 A).
  • Built-in gate protection diode (TO-220AB) 5.
  • Low Ciss: Ciss = 2800 pF TYP.

📥 Download Datasheet

Datasheet preview – K3430

Datasheet Details

Part number K3430
Manufacturer NEC
File Size 102.96 KB
Description 2SK3430
Datasheet download datasheet K3430 Datasheet
Additional preview pages of the K3430 datasheet.

📁 Similar Datasheet

  • K343 - N-Channel MOSFET Transistor (Hitachi)
  • K3403 - 2SK3403 (Toshiba Semiconductor)
  • K3407 - 2SK3407 (Toshiba)
  • K3413-01 - Two-color detector (Hamamatsu)
  • K3413-02 - Two-color detector (Hamamatsu)
  • K3413-05 - Two-color detector (Hamamatsu)
  • K3413-08 - Two-color detector (Hamamatsu)
  • K3413-09 - Two-color detector (Hamamatsu)
  • K3417 - 2SK3417 (Toshiba Semiconductor)
  • K3418 - Silicon N-Channel MOSFET (Renesas)
Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text

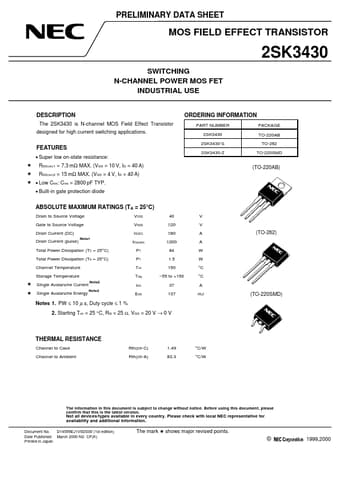

PRELIMINARY DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3430 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE ORDERING INFORMATION PART NUMBER 2SK3430 2SK3430-S 2SK3430-Z PACKAGE TO-220AB TO-262 TO-220SMD DESCRIPTION The 2SK3430 is N-channel MOS Field Effect Transistor designed for high current switching applications. FEATURES • Super low on-state resistance: 5 5 RDS(on)1 = 7.3 mΩ MAX. (VGS = 10 V, ID = 40 A) RDS(on)2 = 15 mΩ MAX. (VGS = 4 V, ID = 40 A) • Built-in gate protection diode (TO-220AB) 5 • Low Ciss: Ciss = 2800 pF TYP. ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Drain to Source Voltage Gate to Source Voltage Drain Current (DC) Drain Current (pulse) Note1 VDSS VGSS ID(DC) ID(pulse) PT PT Tch Tstg Note2 Note2 40 ±20 ±80 ±200 84 http://www.DataSheet4U.
