K3435 - 2SK3435

Datasheet Summary

Description

The 2SK3435 is N-channel MOS Field Effect Transistor designed for high current switching applications.

Features

  • Super low on-state resistance: RDS(on)1 = 14 mΩ MAX. (VGS = 10 V, ID = 40 A) 5 RDS(on)2 = 22 mΩ MAX. (VGS = 4.0 V, ID = 40 A).
  • Built-in gate protection diode 5.
  • Low Ciss: Ciss = 3200 pF TYP. (TO-220AB).

📥 Download Datasheet

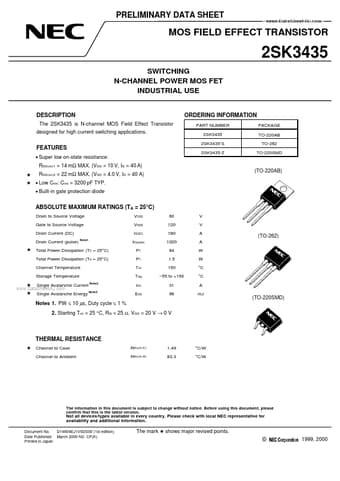

Datasheet preview – K3435

Datasheet Details

Part number K3435
Manufacturer NEC
File Size 81.73 KB
Description 2SK3435
Datasheet download datasheet K3435 Datasheet
Additional preview pages of the K3435 datasheet.

📁 Similar Datasheet

  • K343 - N-Channel MOSFET Transistor (Hitachi)
  • K3403 - 2SK3403 (Toshiba Semiconductor)
  • K3407 - 2SK3407 (Toshiba)
  • K3413-01 - Two-color detector (Hamamatsu)
  • K3413-02 - Two-color detector (Hamamatsu)
  • K3413-05 - Two-color detector (Hamamatsu)
  • K3413-08 - Two-color detector (Hamamatsu)
  • K3413-09 - Two-color detector (Hamamatsu)
  • K3417 - 2SK3417 (Toshiba Semiconductor)
  • K3418 - Silicon N-Channel MOSFET (Renesas)
Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text
PRELIMINARY DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3435 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE ORDERING INFORMATION PART NUMBER 2SK3435 2SK3435-S 2SK3435-Z PACKAGE TO-220AB TO-262 TO-220SMD DESCRIPTION The 2SK3435 is N-channel MOS Field Effect Transistor designed for high current switching applications. FEATURES • Super low on-state resistance: RDS(on)1 = 14 mΩ MAX. (VGS = 10 V, ID = 40 A) 5 RDS(on)2 = 22 mΩ MAX. (VGS = 4.0 V, ID = 40 A) • Built-in gate protection diode 5 • Low Ciss: Ciss = 3200 pF TYP. (TO-220AB) ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Drain to Source Voltage Gate to Source Voltage Drain Current (DC) Drain Current (pulse) Note1 VDSS VGSS ID(DC) ID(pulse) PT PT Tch Tstg Note2 60 ±20 ±80 ±320 84 1.
