K3405 - 2SK3405

Datasheet Summary

Description

The 2SK3405 is N-Channel MOS FET device that

Features

  • a low on-state resistance and excellent switching characteristics, designed for low voltage high current.

📥 Download Datasheet

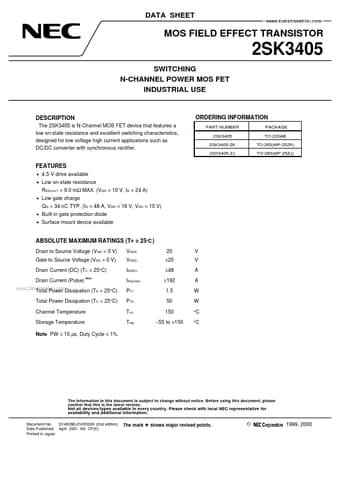

Datasheet preview – K3405

Datasheet Details

Part number K3405
Manufacturer NEC
File Size 1.38 MB
Description 2SK3405
Datasheet download datasheet K3405 Datasheet
Additional preview pages of the K3405 datasheet.

📁 Similar Datasheet

  • K3403 - 2SK3403 (Toshiba Semiconductor)
  • K3407 - 2SK3407 (Toshiba)
  • K3413-01 - Two-color detector (Hamamatsu)
  • K3413-02 - Two-color detector (Hamamatsu)
  • K3413-05 - Two-color detector (Hamamatsu)
  • K3413-08 - Two-color detector (Hamamatsu)
  • K3413-09 - Two-color detector (Hamamatsu)
  • K3417 - 2SK3417 (Toshiba Semiconductor)
  • K3418 - Silicon N-Channel MOSFET (Renesas)
  • K342 - Oscillator (ETC)
Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text
DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3405 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE DESCRIPTION The 2SK3405 is N-Channel MOS FET device that features a low on-state resistance and excellent switching characteristics, designed for low voltage high current applications such as DC/DC converter with synchronous rectifier. ORDERING INFORMATION PART NUMBER 2SK3405 2SK3405-ZK 2SK3405-ZJ PACKAGE TO-220AB TO-263(MP-25ZK) TO-263(MP-25ZJ) FEATURES • 4.5-V drive available • Low on-state resistance RDS(on)1 = 9.0 mΩ MAX. (VGS = 10 V, ID = 24 A) • Low gate charge QG = 34 nC TYP.
