S7A161830M Datasheet - NETSOL

512Kx36 & 1Mx18 Sync-Pipelined Burst SRAM

S7A161830M Features

* VDD = 1.8V (1.7V ~ 2.0V) or 2.5V(2.3V ~ 2.7V) or 3.3V(3.1V ~ 3.5V) Power Supply

* VDDQ = 1.7V~2.0V I/O Power Supply (VDD=1.8V) or 2.3V~2.7V I/O Power Supply (VDD=2.5V) or 2.3V~3.5V I/O Power Supply (VDD=3.3V)

* Synchronous Operation

* 2 Stage Pipelined operation wit

S7A161830M General Description

The S7A163630M and S7A161830M are 18,874,368-bit Synchronous Static Random Access Memory designed for high performance. It is organized as 512K(1M) words of 36(18) bits and integrates address and control registers, a 2-bit burst address counter and added some new functions for high performance appli.

S7A161830M Datasheet (478.42 KB)

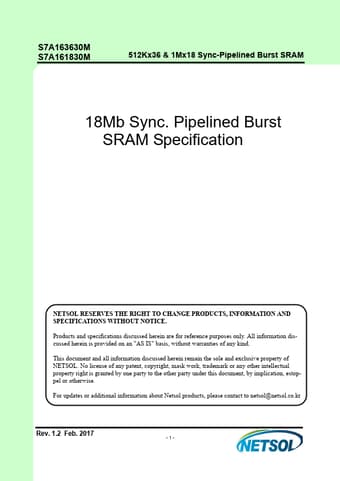

S7A161830M Datasheet Preview — Preview of S7A161830M PDF

Datasheet Details

Part number:

S7A161830M

Manufacturer:

NETSOL

File Size:

478.42 KB

Description:

512kx36 & 1mx18 sync-pipelined burst sram.
S7A163630M SS77AA116613863300MM S7A161830M 512Kx36 & 1Mx18 Sync-Pipelined Burst SRAM 512Kx36 & 1Mx18 Sync-Pipelined Burst SRAM 18Mb Sync. Pipelined .
