S7A321830M, S7A323630M, 1Mx36 & 2Mx18 Sync-Pipelined Burst SRAM

S7A323630M SS77AA332213863300MM S7A321830M 1Mx36 & 2Mx18 Sync-Pipelined Burst SRAM 1Mx36 & 2Mx18 Sync-Pipelined Burst SRAM 36Mb Sync.Pipelined Burs.
The S7A323630M and S7A321830M are 32,748,736-bit Synchronous Static Random Access Memory designed for high performance.

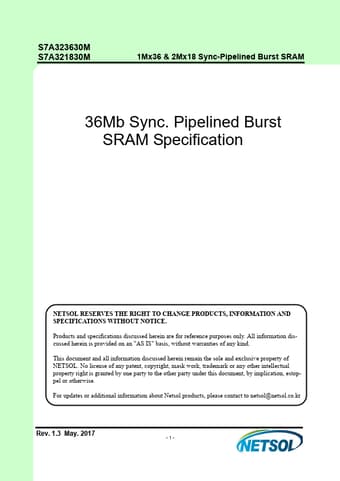

datasheet Preview Page 1 from Datasheet4u.com

S7A323630M-NETSOL.pdf

S7A321830M Datasheet Preview — This datasheet PDF includes multiple part numbers: S7A321830M, S7A323630M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S7A321830M, S7A323630M

Manufacturer:

NETSOL

File Size:

533.88 KB

Description:

1Mx36 & 2Mx18 Sync-Pipelined Burst SRAM

Note:

This datasheet PDF includes multiple part numbers: S7A321830M, S7A323630M.
Please refer to the document for exact specifications by model.

Features

* VDD = 1.8V (1.7V ~ 2.0V) or 2.5V (2.3V ~ 2.7V) or 3.3V (3.1V ~ 3.5V) Power Supply
* VDDQ = 1.7V ~ 2.0V I/O Power Supply (VDD=1.8V) or 2.3V ~ 2.7V I/O Power Supply (VDD=2.5V) or 2.3V ~ 3.5V I/O Power Supply (VDD=3.3V)
* Synchronous Operation
* 2 Stage Pipelined opera

Applications

* GW, BW, LBO, ZZ. Write cycles are internally self-timed and synchronous. Full bus-width write is done by GW, and each byte write is performed by the combination of WEx and BW when GW is high. And with CS1 high, ADSP is blocked to control signals. Burst cycle can be initiated with either the address
