S7A641830M 2Mx36 & 4Mx18 Sync-Pipelined Burst SRAM

The S7A643630M and S7A641830M are 75,497,472-bit Synchronous Static Random Access Memory designed for high performance. It is organized as 2M(4M) words of 36(18) bits and integrates address and control registers, a 2-bit burst address counter and added some new functions for high performance applica.

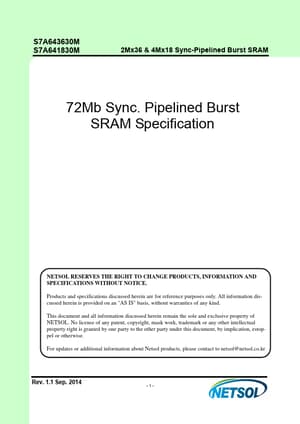

S7A643630M SS77AA664413863300MM S7A641830M 2Mx36 & 4Mx18 Sync-Pipelined Burst SRAM 2Mx36 & 4Mx18 Sync-Pipelined Burst SRAM 72Mb Sync. Pipelined Burst SRAM Specification NETSOL RESERVES THE RIGHT TO CHANGE PRODUCTS, INFORMATION AND SPECIFICATIONS WITHOUT NOTICE. Products and specifications discussed herein are for reference purposes only. All information discussed herein is provided on an "AS IS" basis, without warranties of any kind. This document and all information discussed herein remain t.

S7A641830M Features

* VDD = 2.5V(2.3V ~ 2.7V) or 3.3V(3.1V ~ 3.5V) Power Supply

* VDDQ = 2.3V~2.7V I/O Power Supply (VDD=2.5V) or 2.3V~3.5V I/O Power Supply (VDD=3.3V)

* Synchronous Operation

* 2 Stage Pipelined operation with 4 Burst

* On-Chip Address Counter

* Self-Time

S7A643630M-NETSOL.pdf

S7A641830M Datasheet Preview — This datasheet PDF includes multiple part numbers: S7A641830M, S7A643630M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S7A641830M, S7A643630M

Manufacturer:

NETSOL

File Size:

562.25 KB

Description:

2mx36 & 4mx18 sync-pipelined burst sram.

Note:

This datasheet PDF includes multiple part numbers: S7A641830M, S7A643630M.
Please refer to the document for exact specifications by model.
