S7A643630M 2Mx36 & 4Mx18 Sync-Pipelined Burst SRAM

S7A643630M Description

S7A643630M SS77AA664413863300MM S7A641830M 2Mx36 & 4Mx18 Sync-Pipelined Burst SRAM 2Mx36 & 4Mx18 Sync-Pipelined Burst SRAM 72Mb Sync.Pipelined Burs.
The S7A643630M and S7A641830M are 75,497,472-bit Synchronous Static Random Access Memory designed for high performance.

S7A643630M Features

* VDD = 2.5V(2.3V ~ 2.7V) or 3.3V(3.1V ~ 3.5V) Power Supply
* VDDQ = 2.3V~2.7V I/O Power Supply (VDD=2.5V) or 2.3V~3.5V I/O Power Supply (VDD=3.3V)
* Synchronous Operation
* 2 Stage Pipelined operation with 4 Burst
* On-Chip Address Counter
* Self-Time

S7A643630M Applications

* GW, BW, LBO, ZZ. Write cycles are internally self-timed and synchronous. Full bus-width write is done by GW, and each byte write is performed by the combination of WEx and BW when GW is high. And with CS1 high, ADSP is blocked to control signals. Burst cycle can be initiated with either the address

📥 Download Datasheet

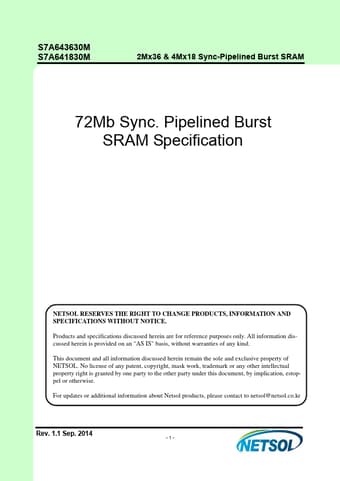

Preview of S7A643630M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S7A643630M
Manufacturer
NETSOL
File Size
562.25 KB
Datasheet
S7A643630M-NETSOL.pdf
Description
2Mx36 & 4Mx18 Sync-Pipelined Burst SRAM
