S7L6418U2M 2Mx36 & 4Mx18 DDRII+ CIO BL2 SRAM w/ ODT

The S7L6436U2M and S7L6418U2M are 75,497,472-bits DDR Common I/O Synchronous Pipelined Burst SRAMs. They are organized as 2.097,152 words by 36bits for S7L6436U2M and 4,194,304 words by 18 bits for S7L6418U2M. Address, data inputs, and all control signals are synchronized to the input clock (K or K).

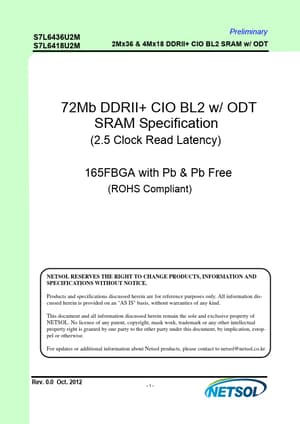

SSSS7777LLLL6666444413318668UUUU2222MMMM Preliminary 22MMxx3366 && 44MMxx1188 DDDDRRIIII++ CCIIOO BBLL22 SSRRAAMM ww// OODDTT 72Mb DDRII+ CIO BL2 w/ ODT SRAM Specification (2.5 Clock Read Latency) 165FBGA with Pb & Pb Free (ROHS Compliant) NETSOL RESERVES THE RIGHT TO CHANGE PRODUCTS, INFORMATION AND SPECIFICATIONS WITHOUT NOTICE. Products and specifications discussed herein are for reference purposes only. All information discussed herein is provided on an "AS IS" basis, without warranties o.

S7L6418U2M Features

* Key Parameters

* 1.8V+0.1V/-0.1V Power Supply.

* DLL circuitry for wide output data valid window and future fre- quency scaling.

* I/O Supply Voltage 1.5V+0.1V/-0.1V for 1.5V I/O, 1.8V+0.1V/-0.1V for 1.8V I/O.

* Pipelined, double-data rate operation.

* Commo

S7L6436U2M-NETSOL.pdf

S7L6418U2M Datasheet Preview — This datasheet PDF includes multiple part numbers: S7L6418U2M, S7L6436U2M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S7L6418U2M, S7L6436U2M

Manufacturer:

NETSOL

File Size:

409.99 KB

Description:

2mx36 & 4mx18 ddrii+ cio bl2 sram w/ odt.

Note:

This datasheet PDF includes multiple part numbers: S7L6418U2M, S7L6436U2M.
Please refer to the document for exact specifications by model.
