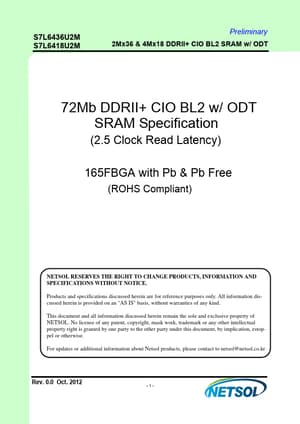

S7L6436U2M Datasheet Preview — Preview of S7L6436U2M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S7L6436U2M
Manufacturer	NETSOL
File Size	409.99 KB
Description	2Mx36 & 4Mx18 DDRII+ CIO BL2 SRAM w/ ODT
Datasheet	S7L6436U2M-NETSOL.pdf

S7L6436U2M Product details

Description

The S7L6436U2M and S7L6418U2M are 75,497,472-bits DDR Common I/O Synchronous Pipelined Burst SRAMs.

Features

Key Parameters.
1.8V+0.1V/-0.1V Power Supply.
DLL circuitry for wide output data valid window and future fre- quency scaling.
I/O Supply Voltage 1.5V+0.1V/-0.1V for 1.5V I/O, 1.8V+0.1V/-0.1V for 1.8V I/O.
Pipelined, double-data rate operation.
Common data input/output bus.
HSTL I/O.
Full data coherency, providing most current data.
Synchronous pipeline read with self timed late write.
Read latency : 2.5 clo.
