KT150, BEAM PENTODE POWER AMPLIFIER

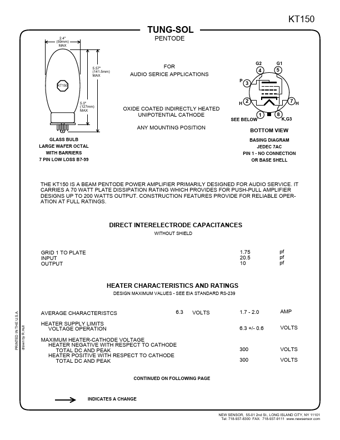

2.4" (59mm) MAX TUNG-SOL PENTODE KT150 KT150 5.57" (141.5mm) MAX 5.0" (127mm) MAX GLASS BULB LARGE WAFER OCTAL WITH BARRIERS 7 PIN LOW LOSS B7-9.

datasheet Preview Page 1 from Datasheet4u.com

KT150-NEWSENSOR.pdf

KT150 Datasheet Preview — Preview of KT150 PDF

Datasheet Details

Part number:

KT150

Manufacturer:

NEW SENSOR

File Size:

794.63 KB

Description:

BEAM PENTODE POWER AMPLIFIER

Features

* PROVIDE FOR RELIABLE OPERATION AT FULL RATINGS. GRID 1 TO PLATE INPUT OUTPUT DIRECT INTERELECTRODE CAPACITANCES WITHOUT SHIELD 1.75 20.5 10 pf pf pf HEATER CHARACTERISTICS AND RATINGS DESIGN MAXIMUM VALUES - SEE EIA STANDARD RS-239 AVERAGE CHARACTERISTCS 6.3 HEATER SUPPLY LIMITS VOLTAGE OPERA

Applications

* G2 4 P3 G1 5 OXIDE COATED INDIRECTLY HEATED UNIPOTENTIAL CATHODE ANY MOUNTING POSITION H 2 7H 1 SEE BELOW 8 K,G3 BOTTOM VIEW BASING DIAGRAM JEDEC 7AC PIN 1 - NO CONNECTION OR BASE SHELL THE KT150 IS A BEAM PENTODE POWER AMPLIFIER PRIMARILY DESIGNED FOR AUDIO SERVICE. IT CARRIES A 70 WATT PL
