GT600HF65T9H - IGBT

📥 Download Datasheet

Preview of GT600HF65T9H PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number GT600HF65T9H
Manufacturer NJSME
File Size 940.58 KB
Description IGBT
Datasheet download datasheet GT600HF65T9H-NJSME.pdf

GT600HF65T9H Product details

Description

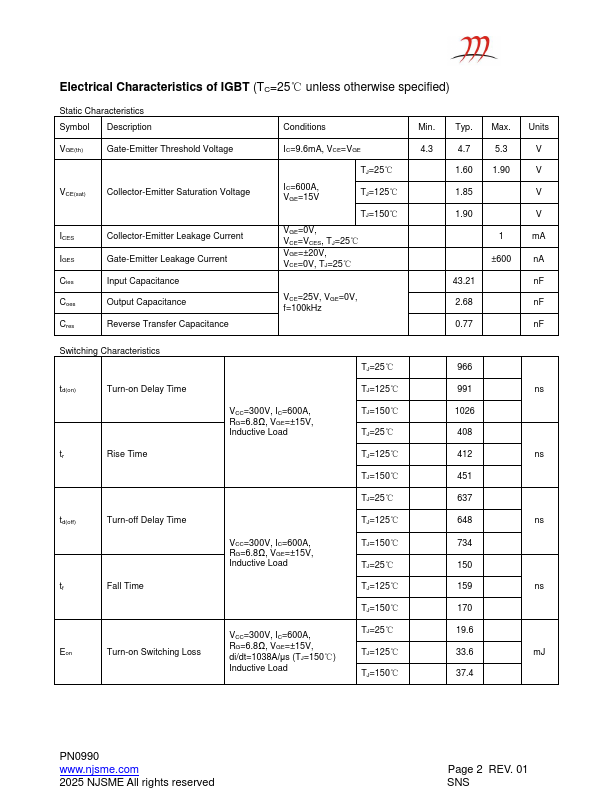

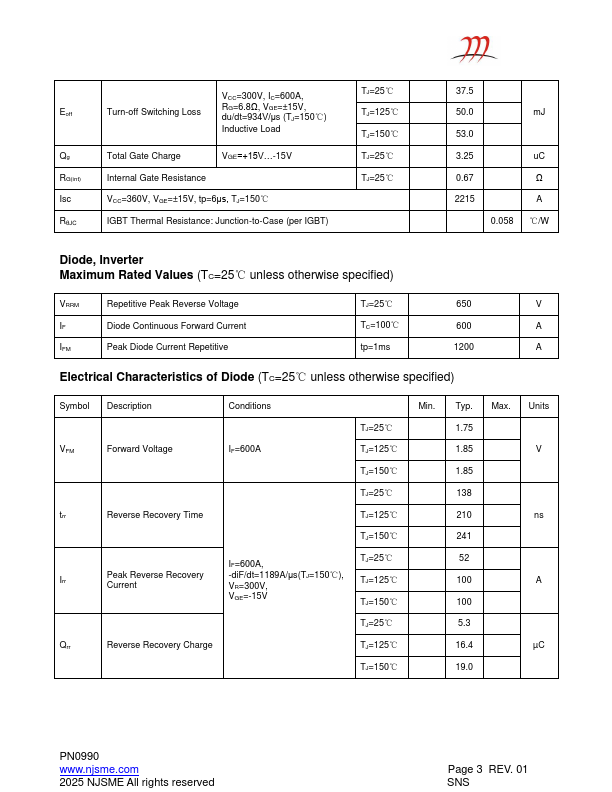

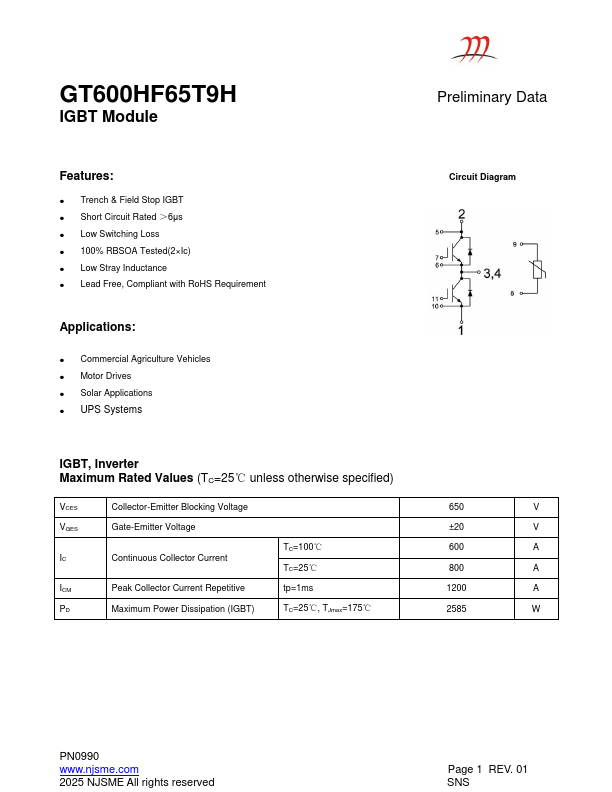

Conditions Min.Typ.VGE(th) Gate-Emitter Threshold Voltage VCE(sat) Collector-Emitter Saturation Voltage ICES Collector-Emitter Leakage Current IGES Gate-Emitter Leakage Current Cies Input Capacitance Coes Output Capacitance Cres Reverse Transfer Capacitance IC=9.6mA, VCE=VGE TJ=25℃ IC=600A, VGE=15V TJ=125℃ TJ=150℃ VGE=0V, VCE=VCES, TJ=25℃ VGE=±20V, VCE=0V, TJ=25℃ VCE=25V, VGE=0V, f=100kHz 4.3 4.7 1.60 1.85 1.90 43.21 2.68 0.77 Max.5.3 1.90 1 ±600 Units V V V V mA
