NSREF3012, Precision Low Power SOT23-3L Series Voltage Reference

NSREF30xx Precision Low Power SOT23-3L Series Voltage Reference Datasheet (EN) 1.0 Product Overview The NSREF30xx is a family of low power, low dropo.

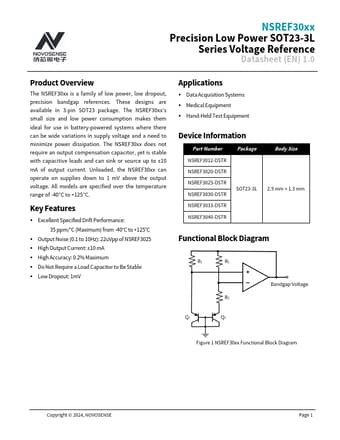

datasheet Preview Page 1 from Datasheet4u.com

NSREF3012-NOVOSENSE.pdf

NSREF3012 Datasheet Preview — Preview of NSREF3012 PDF

Datasheet Details

Part number:

NSREF3012

Manufacturer:

NOVOSENSE

File Size:

5.94 MB

Description:

Precision Low Power SOT23-3L Series Voltage Reference

Features

* Excellent Specified Drift Performance: 35 ppm/°C (Maximum) from -40°C to +125°C
* Output Noise (0.1 to 10Hz): 22uVpp of NSREF3025
* High Output Current: ±10 mA
* High Accuracy: 0.2% Maximum
* Do Not Require a Load Capacitor to Be Stable

Applications

* Data Acquisition Systems
* Medical Equipment
* Hand-Held Test Equipment Device Information Part Number Package NSREF3012-DSTR NSREF3020-DSTR NSREF3025-DSTR NSREF3030-DSTR SOT23-3L NSREF3033-DSTR NSREF3040-DSTR Body Size 2.9 mm × 1.3 mm Functional Block Diagram Figure 1 NSRE
