NSREF3025 Precision Low Power SOT23-3L Series Voltage Reference

NSREF30xx Precision Low Power SOT23-3L Series Voltage Reference Datasheet (EN) 1.0 Product Overview The NSREF30xx is a family of low power, low dropout, precision bandgap references. These designs are available in 3-pin SOT23 package. The NSREF30xx's small size and low power consumption makes them ideal for use in battery-powered systems where there can be wide variations in supply voltage and a need to minimize power dissipation. The NSREF30xx does not require an output compensation capacitor,.

NSREF3025 Features

* Excellent Specified Drift Performance: 35 ppm/°C (Maximum) from -40°C to +125°C

* Output Noise (0.1 to 10Hz): 22uVpp of NSREF3025

* High Output Current: ±10 mA

* High Accuracy: 0.2% Maximum

* Do Not Require a Load Capacitor to Be Stable

* Low Dropout: 1mV Applications

NSREF3012-NOVOSENSE.pdf

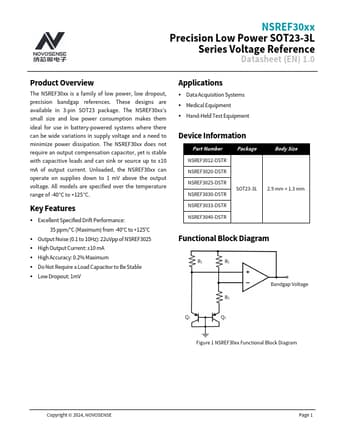

NSREF3025 Datasheet Preview — This datasheet PDF includes multiple part numbers: NSREF3025, NSREF3012. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NSREF3025, NSREF3012

Manufacturer:

NOVOSENSE

File Size:

5.94 MB

Description:

Precision low power sot23-3l series voltage reference.

Note:

This datasheet PDF includes multiple part numbers: NSREF3025, NSREF3012.
Please refer to the document for exact specifications by model.
