NSi8241, NSi8240 Quad-Channel Digital Isolators

NOVOSENSE

Description

NSi824x High Reliability Reinforced Quad-Channel Digital Isolators Datasheet (EN) 1.5 Product Overview The NSi824x devices are high reliability quad-.
15 6.

📥 Download Datasheet

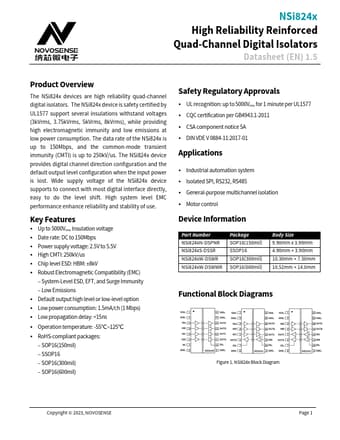

NSi8241 Datasheet Preview — This datasheet PDF includes multiple part numbers: NSi8241, NSi8240. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: NSi8241, NSi8240
Manufacturer: NOVOSENSE
File Size: 3.95 MB
Datasheet: NSi8240-NOVOSENSE.pdf
Description: Quad-Channel Digital Isolators
Note: This datasheet PDF includes multiple part numbers: NSi8241, NSi8240.
Please refer to the document for exact specifications by model.

Features

* Up to 5000Vrms Insulation voltage
* Date rate: DC to 150Mbps
* Power supply voltage: 2.5V to 5.5V
* High CMTI: 250kV/us
* Chip level ESD: HBM: ±8kV
* Robust Electromagnetic Compatibility (EMC)
* System-Level ESD, EFT, and Surge Immunity
* Low Emissions

Applications

* Industrial automation system
* Isolated SPI, RS232, RS485
* General-purpose multichannel isolation
* Motor control Device Information Part Number NSi824xN-DSPNR NSi824xS-DSSR NSi824xW-DSWR NSi824xW-DSWWR Package SOP16(150mil) SSOP16 SOP16(300mil) SOP16(600mil) Body Size 9.90mm
