NSi8242, NSi8240 - Quad-Channel Digital Isolators

NSi8242 Description

NSi824x High Reliability Reinforced Quad-Channel Digital Isolators Datasheet (EN) 1.5 Product Overview The NSi824x devices are high reliability quad-.
15 6.

NSi8242 Features

* Up to 5000Vrms Insulation voltage
* Date rate: DC to 150Mbps
* Power supply voltage: 2.5V to 5.5V
* High CMTI: 250kV/us
* Chip level ESD: HBM: ±8kV
* Robust Electromagnetic Compatibility (EMC)
* System-Level ESD, EFT, and Surge Immunity
* Low Emissions

NSi8242 Applications

* Industrial automation system
* Isolated SPI, RS232, RS485
* General-purpose multichannel isolation
* Motor control Device Information Part Number NSi824xN-DSPNR NSi824xS-DSSR NSi824xW-DSWR NSi824xW-DSWWR Package SOP16(150mil) SSOP16 SOP16(300mil) SOP16(600mil) Body Size 9.90mm

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NSi8242, NSi8240. Please refer to the document for exact specifications by model.

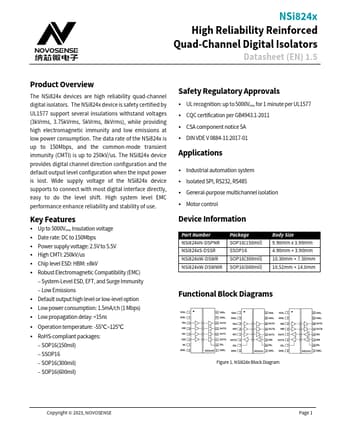

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NSi8242, NSi8240
Manufacturer
NOVOSENSE
File Size
3.95 MB
Datasheet
NSi8240-NOVOSENSE.pdf
Description
Quad-Channel Digital Isolators
Note
This datasheet PDF includes multiple part numbers: NSi8242, NSi8240.
Please refer to the document for exact specifications by model.
